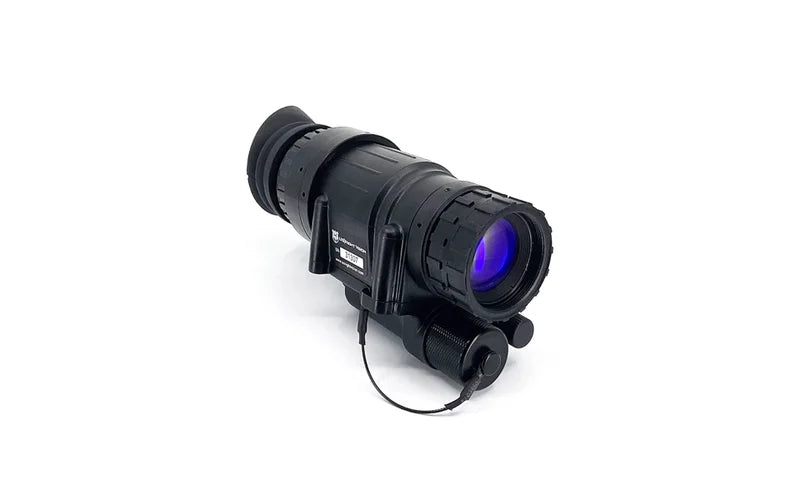

- Monocular NVG consists of a single eyepiece that covers one eye while leaving the other eye free. It resembles a small telescope or a monocular telescope.
- It provides night vision capabilities to the user, allowing them to see in low-light conditions or complete darkness.
- Monocular NVG is lightweight and compact, making it easier to carry and operate. It is often used by individuals who need to maintain peripheral vision in one eye, such as pilots, drivers, or soldiers.
- It typically offers a wide field of view, enabling users to observe a larger area at once.
- Monocular NVG can be mounted on a helmet or headgear for hands-free operation, or it may come with a handheld grip for portable use.

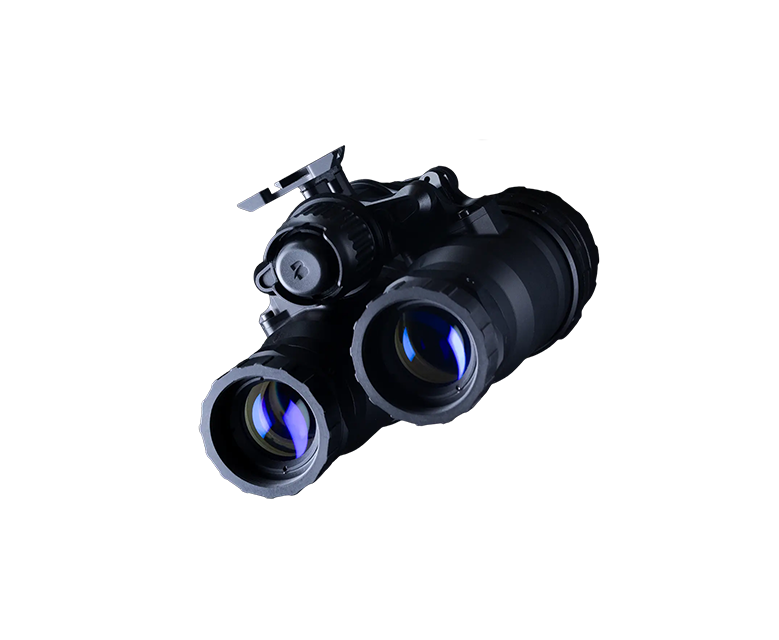

- Binocular NVG consists of two eyepieces, one for each eye, which provides a more natural and immersive viewing experience.
- It offers enhanced depth perception and improves the ability to judge distances accurately.
- Binocular NVG usually has a narrower field of view compared to monocular NVG, but it compensates for it by providing a three-dimensional (3D) view.
- It is commonly used by military personnel, law enforcement officers, and other professionals who require precise depth perception and situational awareness during night operations.
- Binocular NVG can also be mounted on a helmet or headgear for hands-free use.
INFAIRAY MH25 V2 THERMAL MONOCULAR
The MH25 V2 is the smallest fully multi-functional thermal imaging monocular on the market with an astounding 640x512 sensor resolution, 12um pixel size, and 50Hz refresh rate. Capable of detection ranges up to 1250 metres, it can be used as a handheld monocular or helmet mounted monocular. The MH25 features next-generation MATRIX III processing for unmatched viewing experience through its internal 1280x960 internal display. Standard features include bluetooth, picture-in-picture, video out, stadiametric rangefinder, and compatibility with rechargeable 16650 and 16340 batteries as well as external power supply via USB-C
The MH25 V2 updates the legacy MH25 with FIVE major updates:
- a new eyepiece with a generous eyebox and 1x magnification, removing the need for an aftermarket PVS-14 eyepiece upgrade
- a new AMOLED display with improved clarity
- onboard storage for photo and video recording
- onboard microphone for sync'd audio with video recording
- Wifi functionality to connect to the Infiray app for live-view and transfer of images and videos
WARRANTY INFO: Standard 3-year warranty from Infiray Canada
USED THERMAL WARRANTY: STARTED SEPTEMBER 2023
Key Product Highlights:
| Sensor Resolution | 640x512 |
| Sensor Frame Rate | 50Hz |
| Detection Range | 1375 Yards |
| Objective Focal Length | 25mm |
| Optical Magnification | 1x |
| Digital Magnification | 4x |
| Size | 5.03" x 2.75" x 1.77" |
| Weight | 8.64oz |
| Waterproof | IP65 |
| Operating Temperature Range | -10C to +50C |
Full product datasheet HERE.
Instruction manual HERE
What's in the box:
- MH25 (package photo shows MH14 eyepiece)
- Soft Carrying Case
- USB to video out cable
- USB-C power cable
- Mini-rail adapter
- Remote Control
- Eyecup (with MH25 eyepiece only)
- Battery extender
Here are our new advanced custom night vision goggles (NVGs), designed to provide exceptional vision and increased situational awareness in low-light or nighttime conditions. Equipped with cutting-edge technology and tailored features, these NVGs are perfect for professionals, outdoor enthusiasts, and anyone needing reliable night vision capabilities. Depending on your budget and needs!
